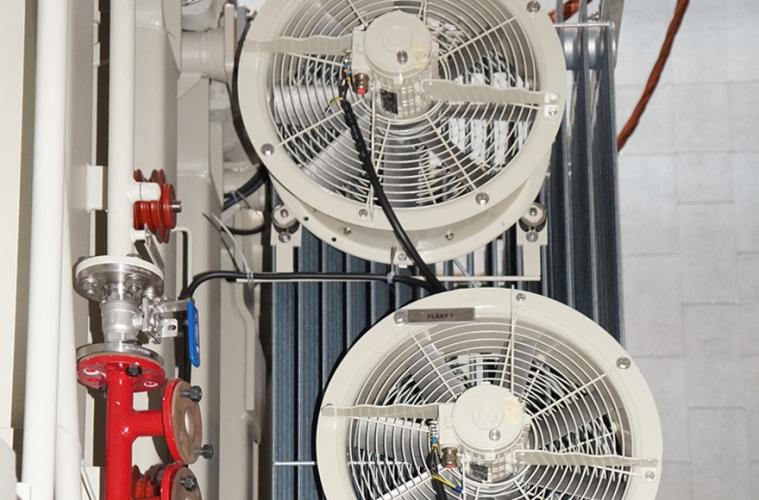

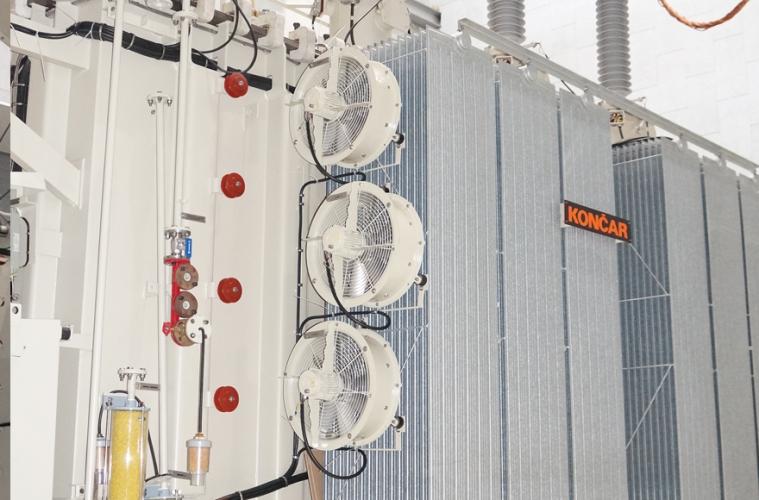

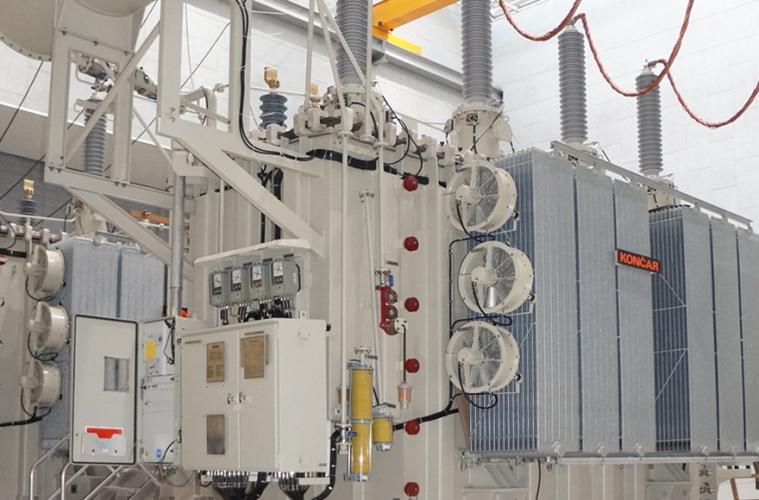

Axial fans for transformer cooling

Each unit is equipped with an electric motor, housing, impeller, and protective grilles, and includes the following features and advantages:

• Low noise level with high air flow
• High efficiency and low energy consumption
• Support for non-standard voltages and frequencies
• Safe operation in all weather conditions (designed for reliable performance in both low and high temperatures)
• Mechanical protection tailored to operating conditions: From IP55 (standard) to IP67 for enhanced environmental protection
• Long service life with extended maintenance intervals
• Special anti-corrosion protection for outdoor installations
• Custom winding projects tailored to meet the operational requirements of transformer manufacturers
• Adaptable to various mounting configurations
• Extensive design options for casings and motors
• Fan dimension adjustments to customer requirements
• Special single-phase options for smaller fans
• Additional features including PTC sensors, winding heaters, motor adaptations for operation with frequency converters, and more

Sizes: 470, 500, 630, 710, 800, 1000, 1250

Standard voltage and frequency: 400V; 50Hz, with customization options available to meet customer needs

Corrosion protection: from C3 to C5h levels

Mechanical protection: from IP55 (standard) to IP67

Operating temperature range: -30°C to +55°C, with options for extreme conditions

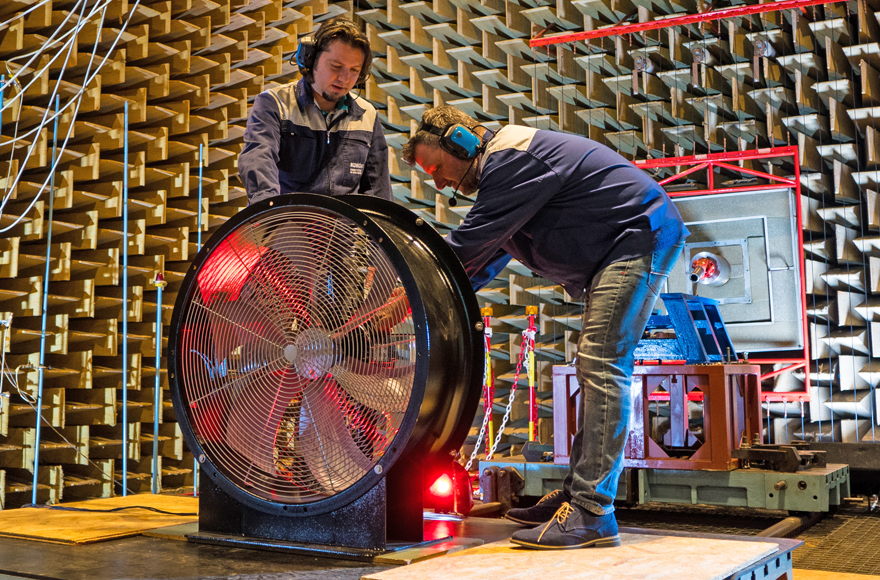

Accredited anechoic chamber

Our Laboratory Centre offers a comprehensive range of services for testing, measuring, analysing, and researching the vibroacoustic characteristics of machines, electrical devices, installations, equipment, and plant facilities. We perform these services both in our specialized facilities and on-site. At the core of our noise and vibration testing capabilities are two specially designed and constructed anechoic chambers, equipped with advanced measurement instruments that enable precise assessment of various sources of sound and vibration.

In addition to the anechoic chambers, our laboratories are equipped with the following advanced equipment to successfully conduct complex vibroacoustic measurements and tests:

• Calibrated sound and vibration sources
• Sound level meter
• Two-channel vibration analyzers
• Multi-channel data recorders and analyzers for noise and vibration
• Acoustic camera with 42 microphones
• Computers for automated measurement and data processing
• Shaker and vibration controller
