Epoxy resin current transformers
The types of epoxy resin current transformers include:
Indoor installation: INA, UNA, ASA, ASAn, APA
Outdoor installation: AGE, APE

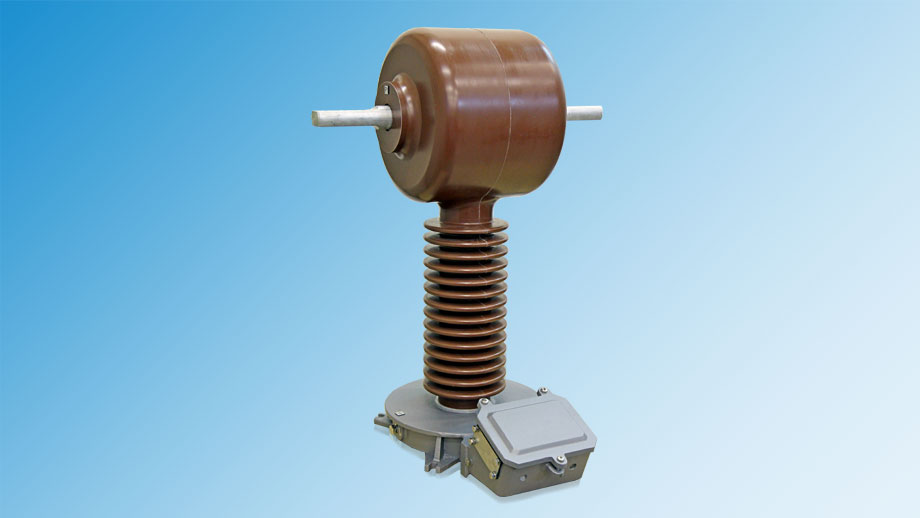

AGE - current transformer (outdoor installation)
- Maximum operating voltage: up to 40.5 kV
- Accuracy class for measuring core: 0.1; 0.2; 0.2S; 0.5; 0.5S; or 1
- Safety factor: 5 or 10
- Accuracy class for protection core: 5P or 10P
- Accuracy limit factor: 5; 10; 15; or 20
- Number of secondary cores: 1 to 3
APE - current transformer (outdoor installation)
- Maximum operating voltage: up to 40.5 kV
- Accuracy class for measuring core: 0.1; 0.2; 0.2S; 0.5; 0.5S; or 1
- Safety factor: 5 or 10
- Accuracy class for protection core: 5P or 10P
- Accuracy limit factor: 5; 10; 15; or 20
- Number of secondary cores: 1 to 3

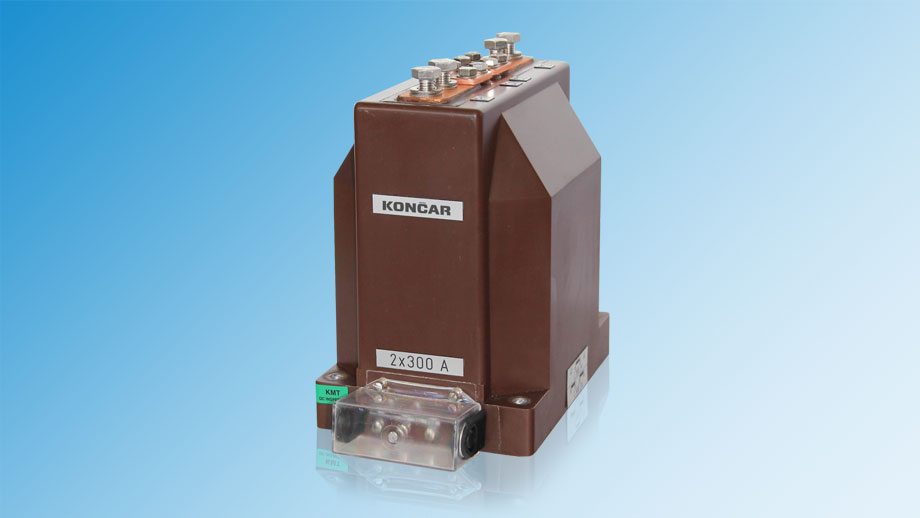

INA - current transformer (indoor installation)
- Maximum operating voltage: up to 40.5 kV
- Accuracy class for measuring core: 0.1; 0.2; 0.2S; 0.5; 0.5S; or 1
- Safety factor: 5 or 10
- Accuracy class for protection core: 5P or 10P
- Accuracy limit factor: 5; 10; 15; or 20
- Number of secondary cores: 1 to 4
